| 荷载 | 类型 | 起升速度M/MIN | 电机功率 | 载重链条数 | 链条规格 | 运行速度 | 电机功率 | 适用轨道 |
| 0.5t | PELH005D | 7.2/2.4 | 0.8/0.27 | 1 | 6.3*19 | 11or21 | 0.4 | 10-32a |
| 1t | PELH010D | 6.6/2.3 | 1.8/0.6 | 1 | 7.1*21 | 11or21 | 0.4 | 10-32a |
| 1.5t | PELH015D | 9.0/3.0 | 3.0/1.0 | 1 | 10*30 | 11or21 | 0.4 | 14-45b |
| 2t | PELH020D | 6.6/3.3 | 3.0/1.0 | 1 | 10*30 | 11or21 | 0.4 | 14-45b |
| PELH020LD | 3.3/1.1 | 1.8/0.6 | 2 | 7.1*21 | 11or21 | 0.4 | 14-45b | |
| 2.5t | PELH025DS | 5.4/1.8 | 3.0/1.0 | 1 | 11.2*34 | 11or21 | 0.75 | 14-45b |
| 3t | PELH030S | 5.4/1.8 | 3.0/1.0 | 1 | 11.2*34 | 11or21 | 0.75 | 14-45b |
| PELH030LD | 4.5/1.5 | 3.0/1.0 | 2 | 10*30 | 11or21 | 0.75 | 14-45b | |
| 5t | PELH050D | 2.7/0.9 | 3.0/1.0 | 2 | 11.2*34 | 11or21 | 0.75 | 20a-63b |
| 7.5t | PELH075D | 1.8/0.6 | 3.0/1.0 | 3 | 11.2*34 | 11or21 | 0.75 | 45a-63c |
| 10t | PELH0100D | 2.7/0.9 | 3.0*2/1.0*2 | 4 | 11.2*34 | 11or21 | 0.75 | 45a-63c |

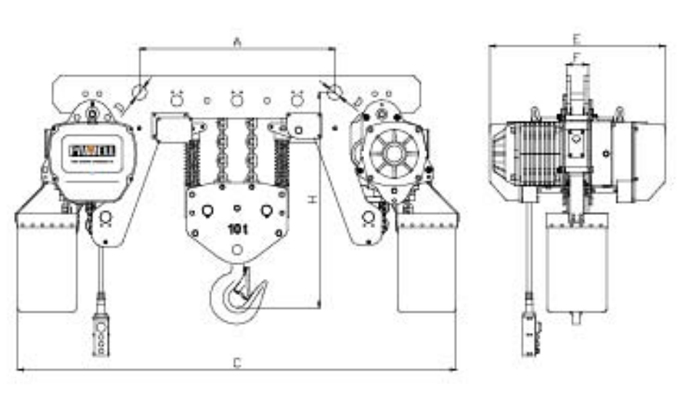

| 类型 | H | A | B | W | U |
| PELH005D | 440 | 460 | 230 | 585 | 445 |
| PELH010D | 480 | 520 | 260 | 630 | 505 |
| PELH015D | 570 | 615 | 295 | 720 | 505 |
| PELH020D | 570 | 615 | 295 | 720 | 505 |
| PELH020LD | 535 | 520 | 260 | 665 | 445 |
| PELH025DS | 640 | 615 | 295 | 775 | 526 |
| PELH030D | 640 | 615 | 295 | 775 | 526 |
| PELH030LD | 685 | 615 | 295 | 750 | 503 |
| PELH050D | 740 | 615 | 295 | 825 | 541 |
| PELH075D | 890 | 615 | 295 | 1020 | 730 |
| PELH0100D | 850 | 615 | 295 | 996 | 700 |
